Bamball's first nozzle!

Post  Bamball95 on Tue Aug 24, 2010 7:33 pm

[url=http://www.servimg.com/image_preview.php?

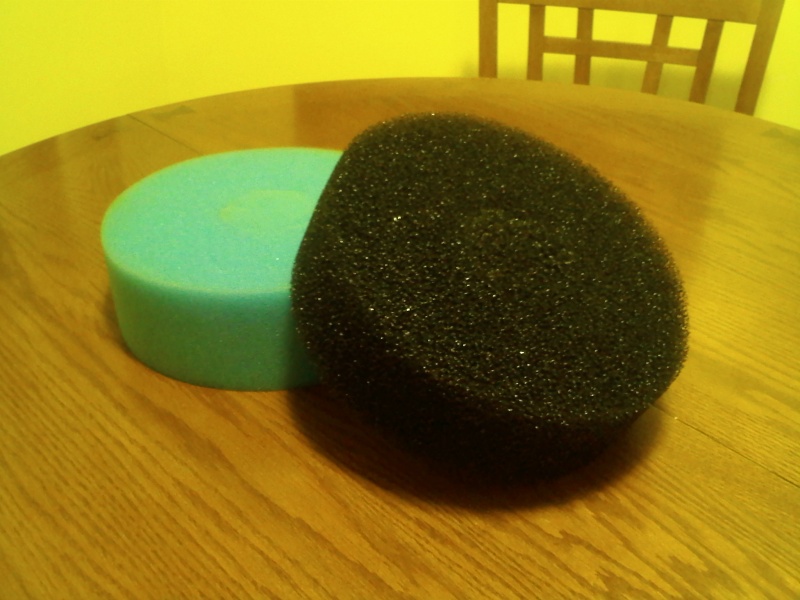

So i bought these filters but one obvious problem... there is a hole in them! So I bought two sets...
img.com/image_preview.php?i=9&u=15441602][/url][url=http://www.servimg.com/image_preview.php?
I used one set to make a plug to fit in the other filter. Leaving two full filters.
i=10&u=15441602][/url][url=http://www.servimg.com/image_preview.php?
This is the top of my nozzle. Two plexi-glass plates bolted together with the nozzle in the center and a large metal washer to secure it.
i=11&u=15441602][/url][url=http://www.servimg.com/image_preview.php?
A close up of the nozzle. The brass piece is a nozzle from John on this forum. Thanks John!!!
i=12&u=15441602][/url][url=http://www.servimg.com/image_preview.php?
Putting the filters in. Black (coarse) one first followed by the blue (fine).
i=13&u=15441602][/url][url=http://www.servimg.com/image_preview.php?
Putting in the straws next. My filter was strong enough to put them right on top, no screen needed.
i=14&u=15441602][/url]
[url=http://www.servimg.com/image_preview.php?
Full of straws
i=15&u=15441602][/url]
[url=http://www.servimg.com/image_preview.php?
Water out of the nozzle.
i=16&u=15441602][/url]
[url=http://www.servimg.com/image_preview.php?
Stream on full output.
i=17&u=15441602][/url]




This is my fountain. It worked great on the first try! It consists of an 8 in steal tube and plexi-glass plates on top and bottom, bolted together. On the inside is about of 2 in of free space, then my two filters, then my straws and then about 1 in of free space. Any questions just ask!!
Thanks, Beau. cheers cheers cheers
