Post  liteglow on Sat Jul 25, 2009 9:36 am

Update..
1 of my laminar is now running outside to test it`s function Smile
It`s raining outside today, but that dont seem to be any problem for my fountain setup.
Actually the wet weather make everything feel more naturally Wink

But I have some small problems.

When I try to have 2 jets together at the same time, the big fountain seems to overflow !!
The pipe supposed to take the water back into the pump is to small.
I dont know what to do about that.. Maybe I need to add another "height" on the fountain.
And add one more pipe into the tank...

My other problem is the light..
I did add 5x3mm fibers into my laminar jet.
The jet is "ok" .. and there was a tiny bit of light into the water.
But so little light that it have to be totally dark to see it I guess !

And I dont know how I will be able to make the LED to point into the fiber..
And to seal everything will also be a problem..

But the biggest problem was that every 5 fibers did broke when I did try to mount the nozzle for a test Sad

So I think I forget about light in my nozzle for this time...
Untill there is some module "ready to mount" that is open in the marked.


Actually , I want to buy 2 Laminar Jets complete ready with light and cutter !!!
Maybe next year Razz
avatar
liteglow
Admin

Posts : 516
Join date : 2009-04-02
Age : 35
Location : Norway

View user profile http://laminar.forumotion.com

Back to top Go down

PICTURE UPDATES !! DUAL LAMINAR

Post  liteglow on Mon Jul 27, 2009 12:37 pm

First a picture of my new Belt CP posing in front of my mist-maker :



Adding one more pipe for the water (drain?) back to the tank..


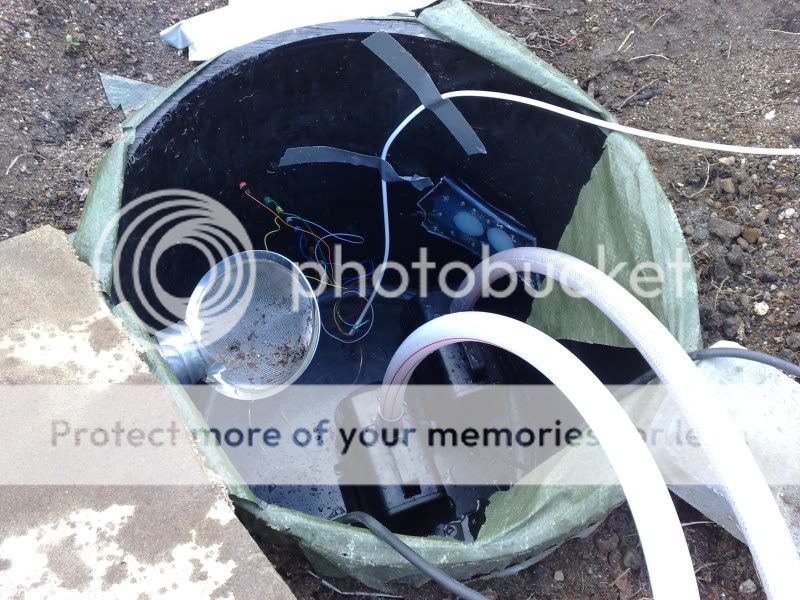

Here is the 2 pump container, cleaned and ready to be used again.



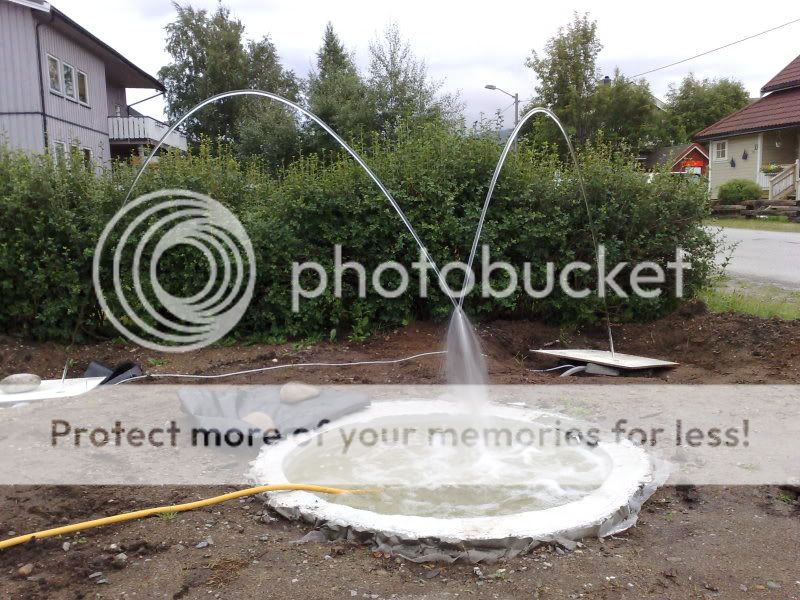

And finally, my 2 laminar jets fully working (but no light, and cutter yet)



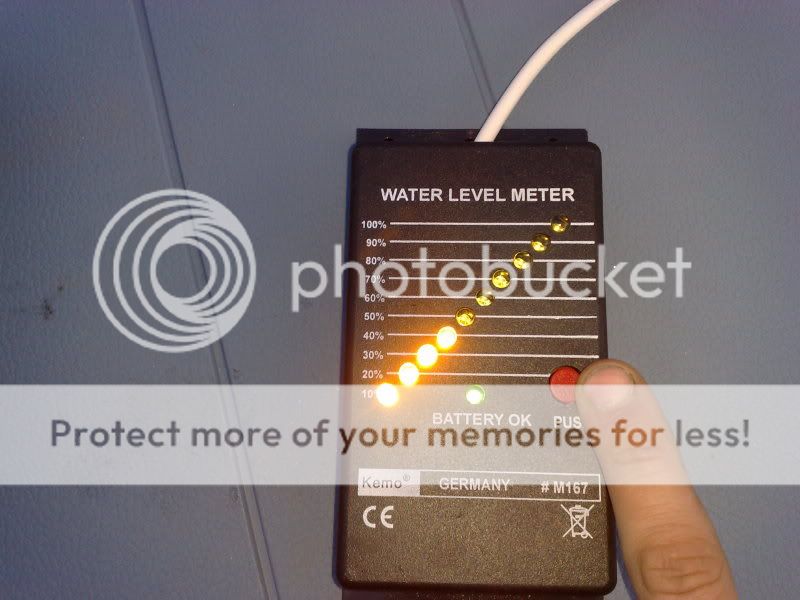

And here is my water level meter that make sure the pump DONT runs without water.
But I still think I need a OFF valve (to be safe)





Adding some more photos:

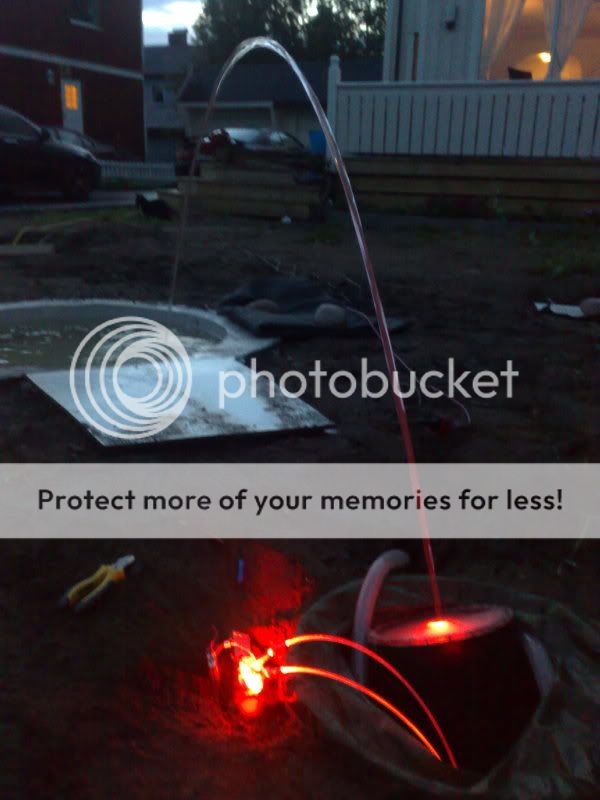

Did test out 2 fiber cables with 2 luxeon RED LED !
Well hmm.. the problem is that the fiber cable is bended, so when I push it up to the top, it bend away from the output :\





The light stuff is still my problem...
avatar
liteglow
Admin

Posts : 516
Join date : 2009-04-02
Age : 35
Location : Norway

View user profile http://laminar.forumotion.com

Back to top Go down

Concentrating the LED light Beam

Post  covewi on Mon Jul 27, 2009 3:59 pm

It appears that you are loosing a lot of light before it ever makes it into the fibers. One way to improve that is to use a Collimator lens to focus the light. What viewing angle is our red LED? If its anything more than about 10-20 degrees much is being lost. Here is a website that offers one such collimator which focuses the LED light to 10 degrees.

http://www.thecustomsabershop.com/Luxeon-Collimator-Lens-10-deg-viewing-angle-P5.aspx

covewi
Nozzle Pro
Nozzle Pro

Posts : 248
Join date : 2009-06-07

View user profile

Back to top Go down

Re: Liteglow`s twin Laminar Jumping Jets :)

Post  liteglow on Tue Jul 28, 2009 3:48 pm

Covewi: I have reflector that I maybe can try.
But the reflector is so big in diameter, so there will anyway bee a huge loss of power !... i think..


Well anyway, here is todays UPDATES Very Happy
What is new:

- NEW design on my Cutter , working p e r f e ct !!
- 2 laminar jets is mounted and working
- USB Relay card is connected at the computer and running

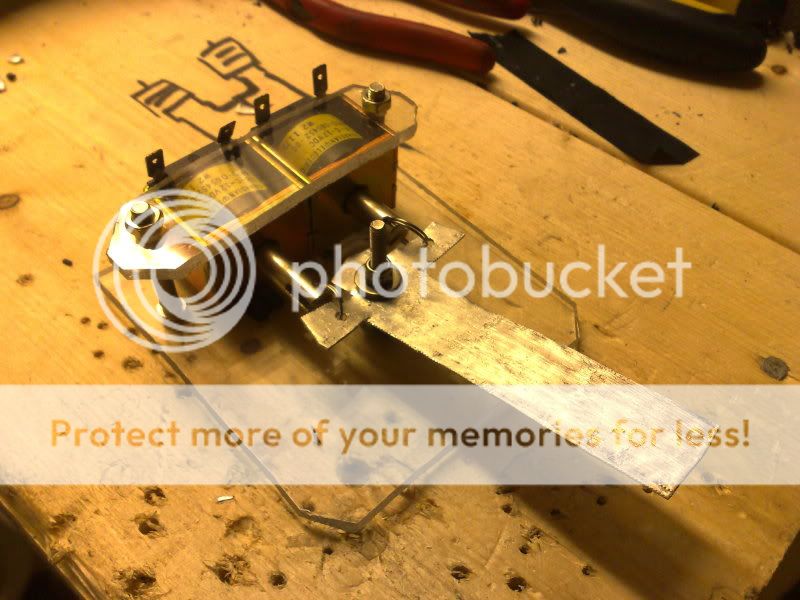

Here is the NEW design on my cutter (work perfectly)



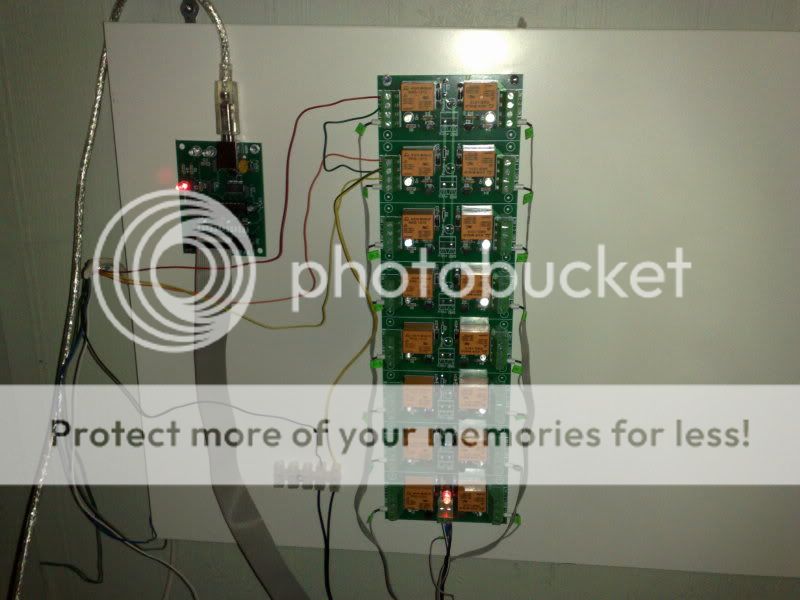

And here is a picture of the USB Relay board mounted in the basement with my MCE computer



2 Laminar hitting each other and creating a "Bell" (I personally call it a hell lot of noise)



And here is the VIDEO :-)
It was pretty late when I shoot the video, but will update tomorrow with a new recording.
