Another small Laminar for indoor use ..

4 posters

Go down

Another small Laminar for indoor use .. Empty Another small Laminar for indoor use ..

Post  liteglow Sun Jun 07, 2009 12:14 pm

Here is another 20minutes DIY project for some indoor laminar nozzles Smile

I let the pictures talk:

Another small Laminar for indoor use .. 07062009828

Another small Laminar for indoor use .. 07062009826

Another small Laminar for indoor use .. 07062009830


The nozzle work perfect Smile

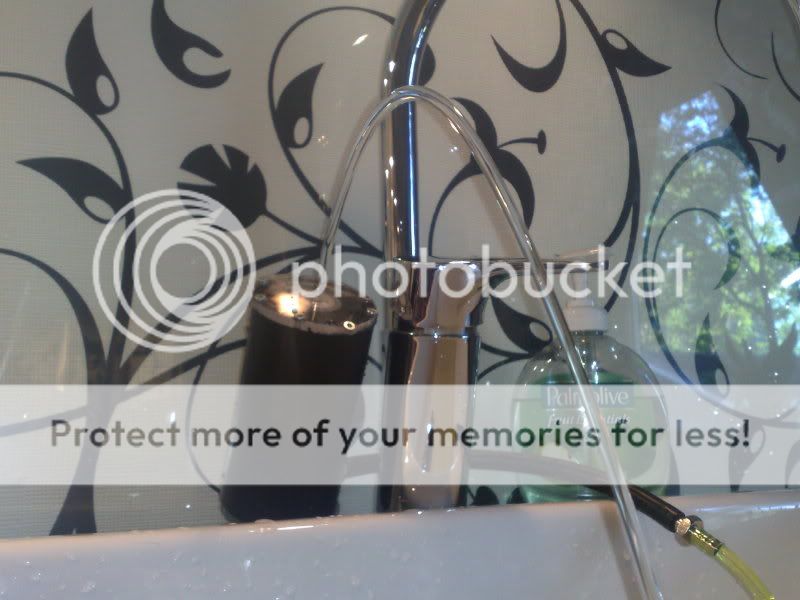

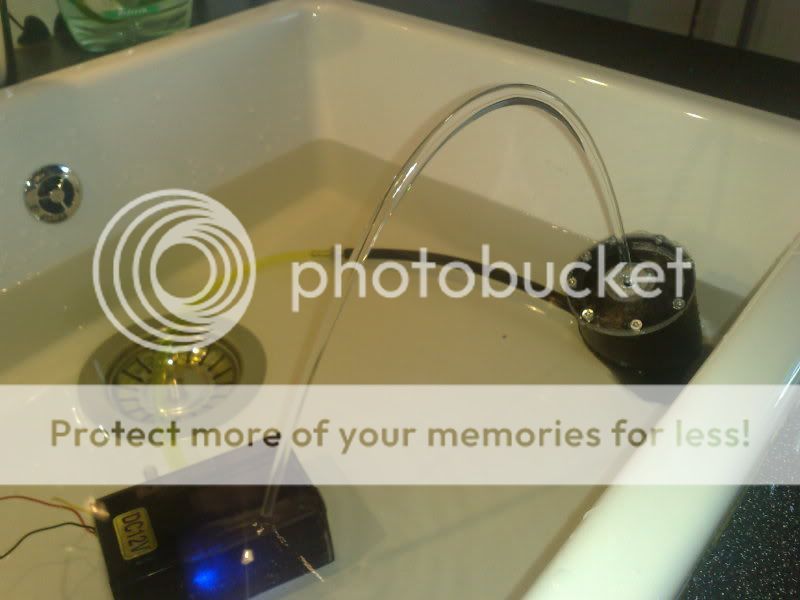

A tiny cute little nozzle, running on a 12volt DC pump from a computer.
