Multiple jets from a single laminar container...Is it possible?

2 posters

Go down

Multiple jets from a single laminar container...Is it possible? Empty Multiple jets from a single laminar container...Is it possible?

Post  Zac Penn Thu Jan 06, 2011 2:18 pm

I just found this website yesterday morning, and have read through about every post in this forum, and haven't found an answer.

I don't think anyone has tried it yet, and the closest thing I could find was the multiple jet patent that is used on hot tubs. That idea would be nice for a small 2' long stream, but i want to create something large that has two or three jets that can be angled from the same container.

I have lots of plastic welding experience, and currently have 12", 16", and 24" sch 40 PVC pipe laying around the warehouse, so I know I can make a container large enough to slow the water velocity down, but the multiple nozzles is where I am unsure. From what I have learned so far, the cleanest streams of water are being created by the machined brass inserts. The side that goes inside the nozzle is flat, and the side exposed to the air, has a taper to it that starts out very sharp....Correct?

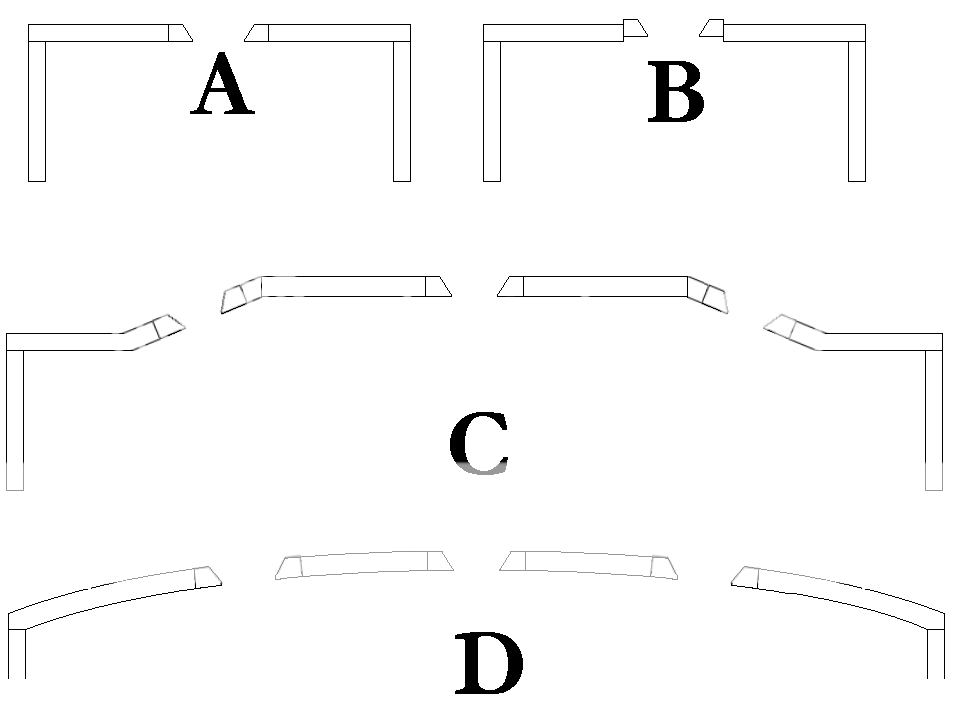

Here is a quick drawing to help out with the following questions...
Multiple jets from a single laminar container...Is it possible? Jetexamples


Example "A" would be the best way for the brass insert to be mounted correct?

Would example "B" create distortion to the stream?

Would it be possible to use a 16" diameter container to mount three brass inserts like in example "C"? The center jet seems like it would work just fine, but I am unsure what would happen with the two angled jets? Got any ideas?


I have also gotten pretty good at bending arcs out of acrylic sheet to create a domed lid for some of my filter containers...I think that would be a better idea for a lid on this large nozzle. That way I could just drill out the hole for the brass insert wherever it would create the correct angle for my outer streams. Does that make sense? Example "D" should help out!

This way if I created a domed lid, with the o-rings on the outside of the lid, like Mario showed in his thread, then you could use straight brackets to angle the entire container from vertical to X degrees, you could adjust the height vs length of the streams, then by rotating the lid inside the container you could manipulate the streams in a left to right direction.

Sorry for the question overload, but I really get excited when I get these fun ideas Wink

Zac

Zac Penn
Nozzle Newbie
Nozzle Newbie

Posts : 2
Join date : 2011-01-06

Back to top Go down

Multiple jets from a single laminar container...Is it possible? Empty Re: Multiple jets from a single laminar container...Is it possible?

Post  liteglow Fri Feb 04, 2011 6:31 am

A is OK
B is NOT ok !!

B will add turbulence to the water before it exit the nozzle !
C and D I dont know Wink go ahead and give it a try :-)

The idea was pretty clever ! I have never thought about adding 2 hole into one nozzle.
But I would first add 2 holes into one FLAT top before I do it like on pic. C and D


let me know how this works out Smile
liteglow
liteglow
Admin

Posts : 523
Join date : 2009-04-02
Age : 42
Location : Norway

https://laminar.forumotion.com
