The smallest nozzle record broken

+2
juggle5
Karlsson
6 posters

Go down

The smallest nozzle record broken Empty The smallest nozzle record broken

Post  Karlsson Fri Jul 31, 2009 1:22 pm

Hi,

I am Karlsson, live in Germany and I will also try a laminar jet to build.

Here my first attempt:

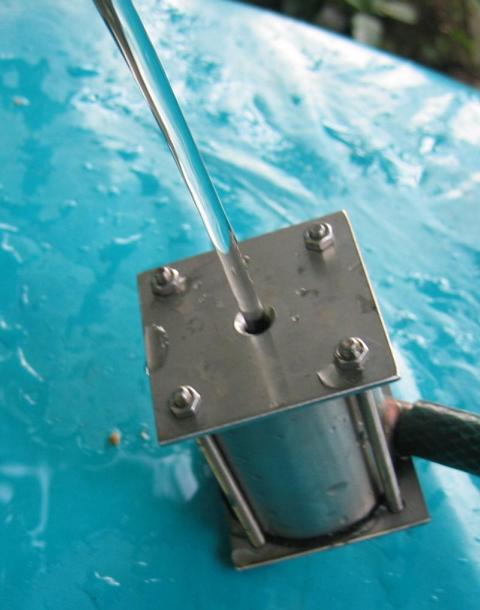

The smallest nozzle record broken Minida12

It is 70 mm high and has a diameter of 50 mm. Die hole is 1 / 4 ".
The beam width is approximately 40-50 mm, before it breaks apart.

The smallest nozzle record broken Minida13

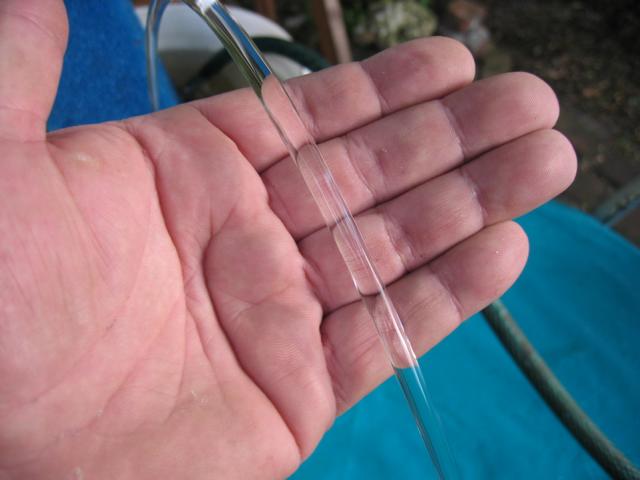

A beautiful, clear beam Very Happy

The smallest nozzle record broken Minida14

All parts. Left is a small low-pass-filter

The smallest nozzle record broken Minida15

Here is the nozzle without a filter, mesh and perforated plate.
You can see the vortex flow through the tangential inlet.

The smallest nozzle record broken Vortex10



It's just a gimmick to learn.
Later, I would like to build a large Nozzle.


I hope you like it and you can understand my bad English affraid


Karlsson
Karlsson
Karlsson
Nozzle Newbie
Nozzle Newbie

Posts : 7
Join date : 2009-07-30
Location : Germany

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  juggle5 Fri Jul 31, 2009 2:02 pm

This is really nice..... Where did you get your stainless tanks to make this.
did you do the welding?

Ken
juggle5
juggle5
Nozzle Newbie
Nozzle Newbie

Posts : 12
Join date : 2009-04-23
Location : San Diego County

http://www.kensmithsculpture.com

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  Karlsson Fri Jul 31, 2009 2:33 pm

Hello Ken,

I do a lot with stainless steel. It is a great material.
And yes, I can weld stainless steel. I have a TIG welder at home.


Incidentally, I love your sculptures. They are perfect!
How you buildt the Ball Bearings Host (correct word?)?
Do you have a drawing?

Karlsson
Karlsson
Karlsson
Nozzle Newbie
Nozzle Newbie

Posts : 7
Join date : 2009-07-30
Location : Germany

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  projeto Fri Jul 31, 2009 9:22 pm

Great job, looks a lot better than my attempt. But i would like to see someone try to put a .250inch output nozzle on an 8inch tube that is working great and see how far they can get .250" beam to go....I have a 4" tube and can only get about 4 feet with .250" beam before it breaks apart.
dave

projeto
Nozzle Newbie
Nozzle Newbie

Posts : 11
Join date : 2009-07-27

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  John Sat Aug 01, 2009 8:11 pm

I see that you are using the filter metal plate with holes and the mess materials, but do you have any gaps or empty space in the nozzle?
John
John
Nozzle Master
Nozzle Master

Posts : 450
Join date : 2009-04-03
Age : 44
Location : Utah

http://www.mad-laboratory.com

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  Karlsson Sun Aug 02, 2009 1:08 am

Below at the inlet 15 mm and 10 mm at the output is empty space (the open rings). That´s all.

The smallest nozzle record broken Img_0011

The smallest nozzle record broken Img_0010


Karlsson
Karlsson
Karlsson
Nozzle Newbie
Nozzle Newbie

Posts : 7
Join date : 2009-07-30
Location : Germany

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  liteglow Sun Aug 02, 2009 4:24 am

That is perfect :-)
What a great art of design you have done there cheers

The nozzle seems like it was build by from a professional factory Wink

I can weld also, but TIG is not easy to weld, so you have done a pretty nice job there...
liteglow
liteglow
Admin

Posts : 523
Join date : 2009-04-02
Age : 40
Location : Norway

https://laminar.forumotion.com

Back to top Go down

The smallest nozzle record broken Empty Re: The smallest nozzle record broken

Post  Magic-nozzle Tue Aug 11, 2009 12:44 am

Hey Karlsson, this is so cool! Congratulation! Really a nice design, interesting is not using straws just filter sponge. Maybe this will work in a big nozzle better than straws? Oase using also only filter sponge and sieves.
Maybe i will try this one day. again amazinmg work!
Magic-nozzle
Magic-nozzle
Nozzle Grand Master
Nozzle Grand Master

Posts : 287
Join date : 2009-04-02
Age : 53
Location : Europe
