This is my first Laminar Water Flow Nozzle.
5 posters
Page 1 of 2
Page 1 of 2 • 1, 2
This is my first Laminar Water Flow Nozzle.
Hi all!

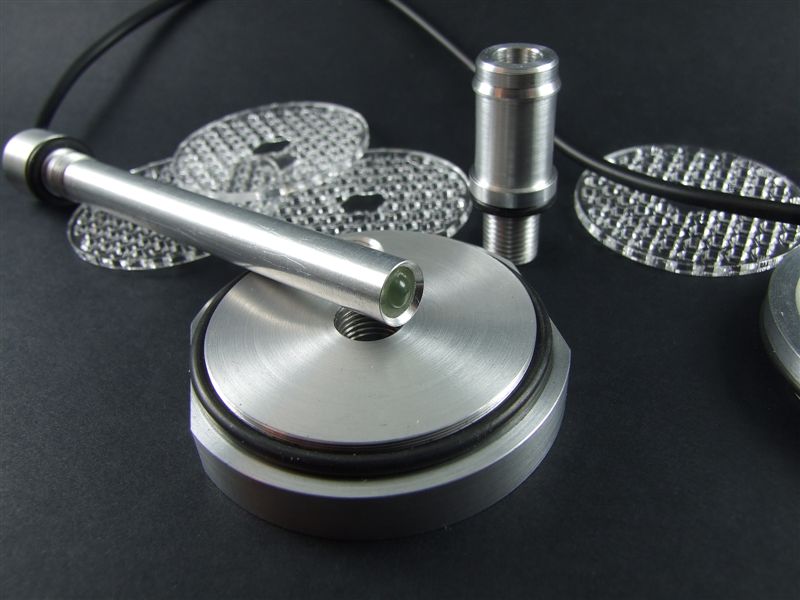

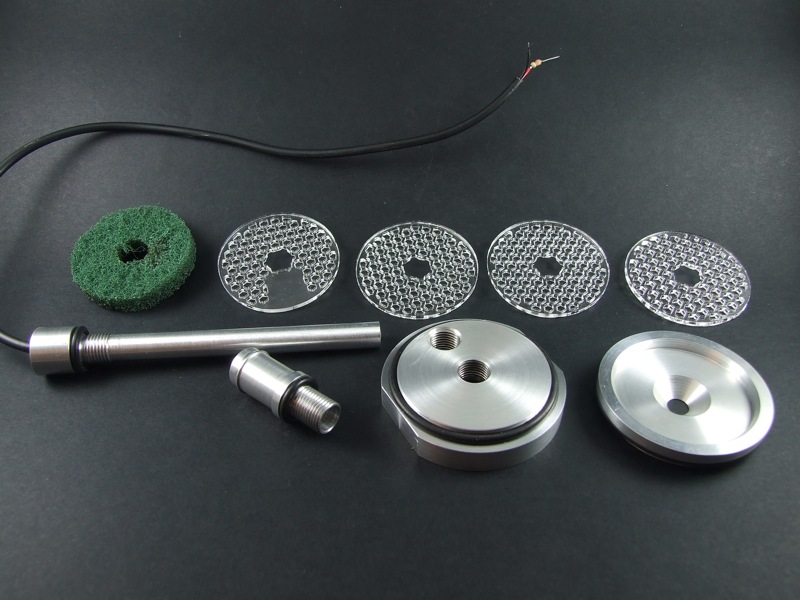

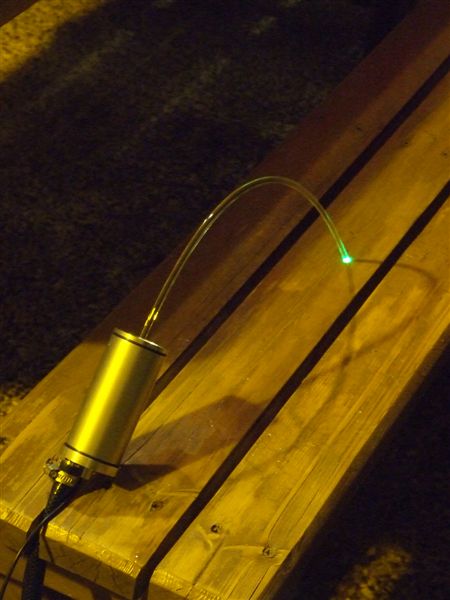

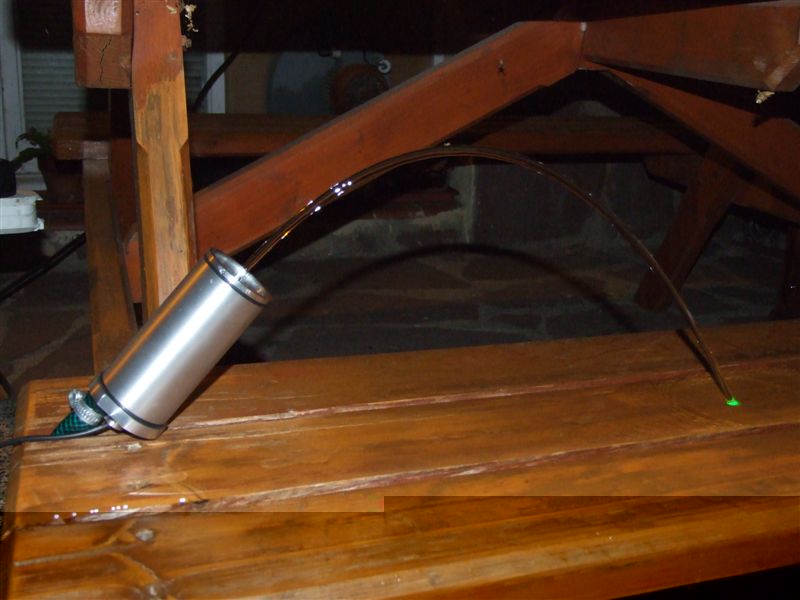

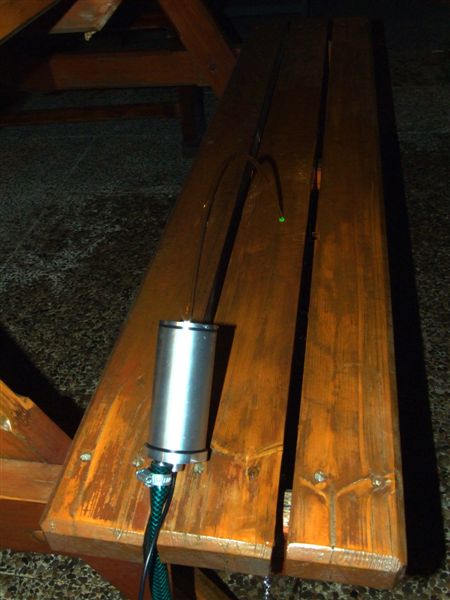

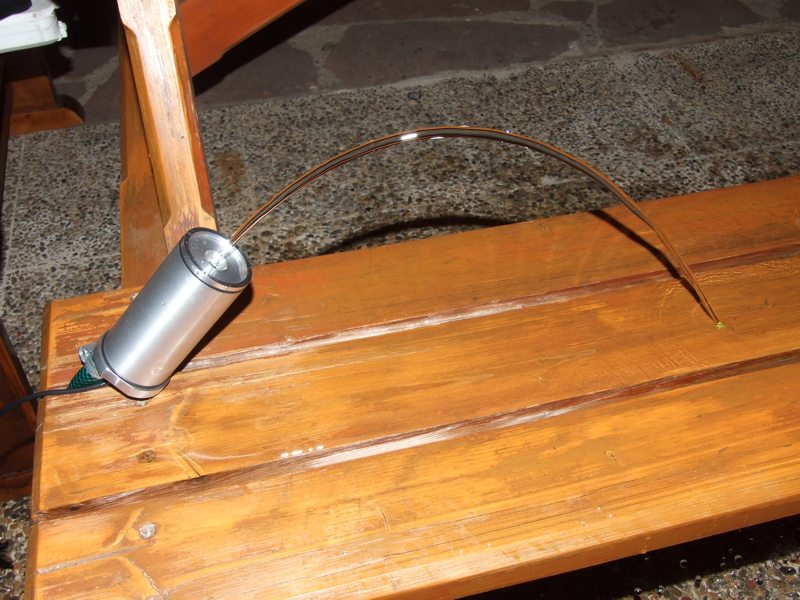

Well... this is my first attempt. After spending many hours turning and threading this weekend I finish late yesterday my first nozzle. I fell myself a bit frustrated because it is not working as expected but I know that there are some "must to do" things ahead like a low-pass filter, pumps and so on...
I am sorry for the bad pictures but I shot them in a hurry last night. Also the video is awful because I have SOX lighting in the backyard (those amber lights) that obviously are not a proper illumination for taking a film but, anyway, I only want to show you that I am working in the project.
All comments and critics will be welcome and appreciated!
All the best, Leonardo.
Well... this is my first attempt. After spending many hours turning and threading this weekend I finish late yesterday my first nozzle. I fell myself a bit frustrated because it is not working as expected but I know that there are some "must to do" things ahead like a low-pass filter, pumps and so on...
I am sorry for the bad pictures but I shot them in a hurry last night. Also the video is awful because I have SOX lighting in the backyard (those amber lights) that obviously are not a proper illumination for taking a film but, anyway, I only want to show you that I am working in the project.
All comments and critics will be welcome and appreciated!
All the best, Leonardo.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
It looks good! Your machining is a thing of beauty! That's a very beautiful nozzle! I can't tell how big everything is but it looks pretty small. The first thing that I would do to improve the nozzle is to make the input a tangential input. Make the input come in from the side. That seems to help the flow be more laminar.
Re: This is my first Laminar Water Flow Nozzle.
Hi John,
Thank you for your kind comments and advice!
Yes, I know about the tangential input but I wanted to try my idea of a radial input impacting on a diffuser... I do not know if the picture is clear enough but if you look at the first acrylic grid, there is a zone that is not perforated that is set just in front of the water input but 10mm ahead. The water should to be distributed in the first chamber and and then pass to the grid.
I think that the tangential input should to give a rotational movement to the fluid and I really do not know what would be better... I should to make another nozzle equal to this one but with the tangential input to be able to compare both behaviors. (???)

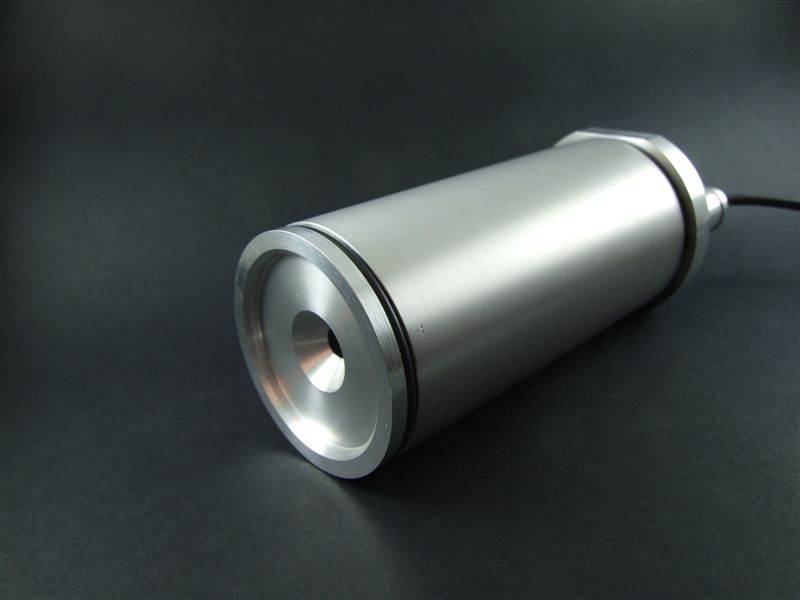

By the way, the nozzle measures are 115mm long by 50mm of diameter (4 1/2 by 2 inches).
Have a great day!!
Leonardo
Thank you for your kind comments and advice!
Yes, I know about the tangential input but I wanted to try my idea of a radial input impacting on a diffuser... I do not know if the picture is clear enough but if you look at the first acrylic grid, there is a zone that is not perforated that is set just in front of the water input but 10mm ahead. The water should to be distributed in the first chamber and and then pass to the grid.
I think that the tangential input should to give a rotational movement to the fluid and I really do not know what would be better... I should to make another nozzle equal to this one but with the tangential input to be able to compare both behaviors. (???)
By the way, the nozzle measures are 115mm long by 50mm of diameter (4 1/2 by 2 inches).
Have a great day!!
Leonardo
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Leonardo! Wow, this looks really great! What a nice nozzle! and the Led is Funny, works perfect. Do you plan to build a bigger version? But relly nicley donne! I love it.
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe
Re: This is my first Laminar Water Flow Nozzle.
Hi Mario!
Thank you a lot for your compliments. Much appreciated!
Well... I did the nozzle in this way, with threaded end caps because I want to experiments some things with it.
After that I would like to do an interior little fountain with it and then I would be ready to built a bigger version.
This might be really a quite addictive hobby, isn't it?
Keep "flowing"!!
Leonardo
Thank you a lot for your compliments. Much appreciated!
Well... I did the nozzle in this way, with threaded end caps because I want to experiments some things with it.
After that I would like to do an interior little fountain with it and then I would be ready to built a bigger version.
This might be really a quite addictive hobby, isn't it?
Keep "flowing"!!
Leonardo
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
It is very addictive! You keep wanting to better the nozzle and make improvements here and there, until you have way too much on your plate!
Re: This is my first Laminar Water Flow Nozzle.
I can see that John... I can see that...
By the way, I like very much the music that you play in your videos! Is it a loop? What's the theme name?
Your videos are great... I should to shoot a better one from my nozzle
Best!
Leonardo.
By the way, I like very much the music that you play in your videos! Is it a loop? What's the theme name?
Your videos are great... I should to shoot a better one from my nozzle
Best!
Leonardo.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
I use a flip HD video camera. They are really cool! It makes sharing videos really easy. I can download the video to my computer and put them on youtube by the push of a button! The music that I usually use on my videos is just part of the software that came with the video camera. I can find out more later.
The construction on your nozzle is really really beautiful! Is it aluminum? You mentioned that you turned it all yourself. Do you have access to a machine shop or do you just have a lathe at home?
The construction on your nozzle is really really beautiful! Is it aluminum? You mentioned that you turned it all yourself. Do you have access to a machine shop or do you just have a lathe at home?
Re: This is my first Laminar Water Flow Nozzle.
Hi John,
I have a Sony DVD video camera that is quite small, stereo sound and have an impressive X 2000 zoom but it is not HD. I am very disappointed with it, the color are awful so it is resting over there. My DSLR Fuji takes quite better videos with real colors and, although it is not stereo I prefer use it than the Sony to take a film.
Regarding the nozzle, thank you again for your compliments. Yes, it is made of aluminum and also yes, fortunately, I have a lathe at home. It is a little one (450mm between the chuck and the tailstock) but quite nice. I have made some improvements on it as a fine adjustments, added DROs (digital read outs) that I made adapting digital calipers and a quick change tools post. Yes... yes... I am a "tools addict"
Actually I make machines John, you can see my lovely "daughter" just clicking in the web link at the right. Please, take a look at it.
All the best,
Leonardo
I have a Sony DVD video camera that is quite small, stereo sound and have an impressive X 2000 zoom but it is not HD. I am very disappointed with it, the color are awful so it is resting over there. My DSLR Fuji takes quite better videos with real colors and, although it is not stereo I prefer use it than the Sony to take a film.
Regarding the nozzle, thank you again for your compliments. Yes, it is made of aluminum and also yes, fortunately, I have a lathe at home. It is a little one (450mm between the chuck and the tailstock) but quite nice. I have made some improvements on it as a fine adjustments, added DROs (digital read outs) that I made adapting digital calipers and a quick change tools post. Yes... yes... I am a "tools addict"
Actually I make machines John, you can see my lovely "daughter" just clicking in the web link at the right. Please, take a look at it.
All the best,
Leonardo
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Leonardo
What kind of DROs do you have on your lathe, i was think about update my own, but i am not shure what is really needfull. I am very new in the lathe business, my Father learned me a lot, he was a turner, but i am still learning.
By the Way i use the newest logitech Camera to grab my videos some kind of ...9000. Yes i have large USB cable to walk arround, or i clamp my small VAIO under the arm and runn up and down with it, to see what i catch
I cant find The link
? Daughter? Machine link? link at the right? Sorry Leonardo, do i miss then train?
What kind of DROs do you have on your lathe, i was think about update my own, but i am not shure what is really needfull. I am very new in the lathe business, my Father learned me a lot, he was a turner, but i am still learning.
By the Way i use the newest logitech Camera to grab my videos some kind of ...9000. Yes i have large USB cable to walk arround, or i clamp my small VAIO under the arm and runn up and down with it, to see what i catch
I cant find The link
? Daughter? Machine link? link at the right? Sorry Leonardo, do i miss then train?
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe

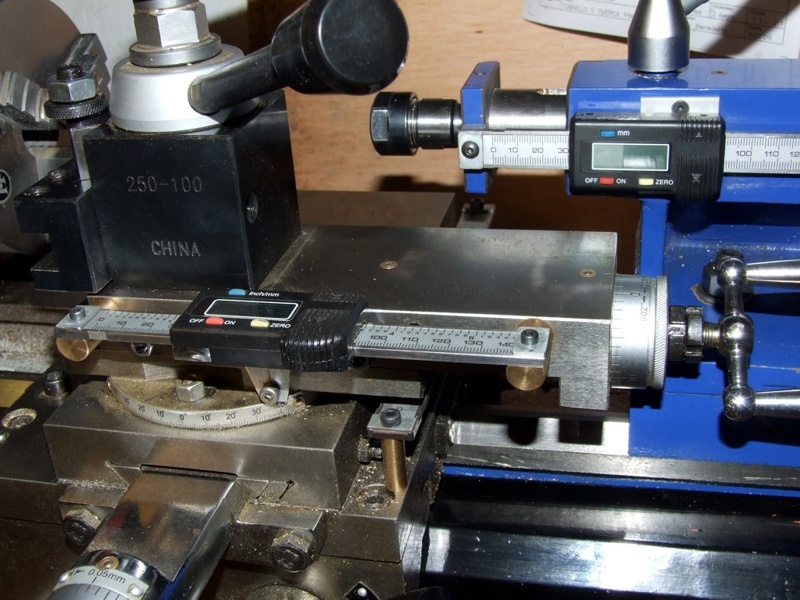

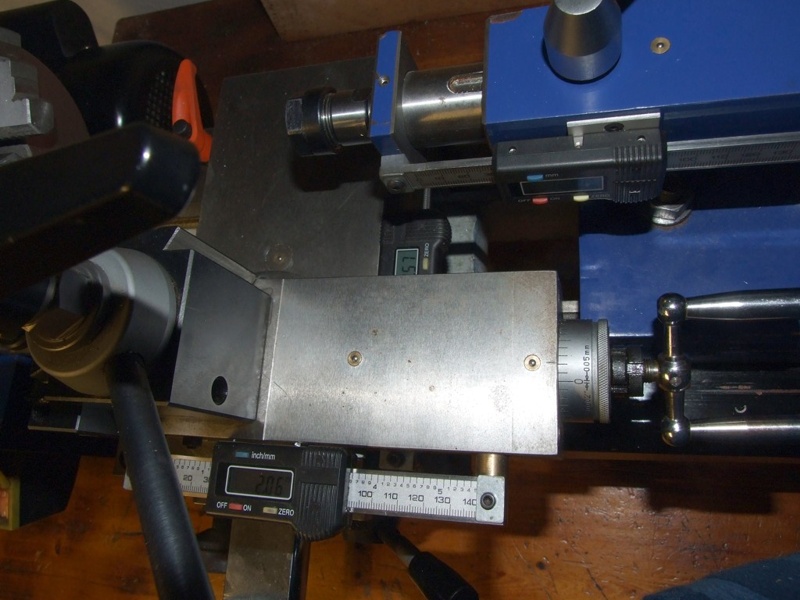

Lathe DROs

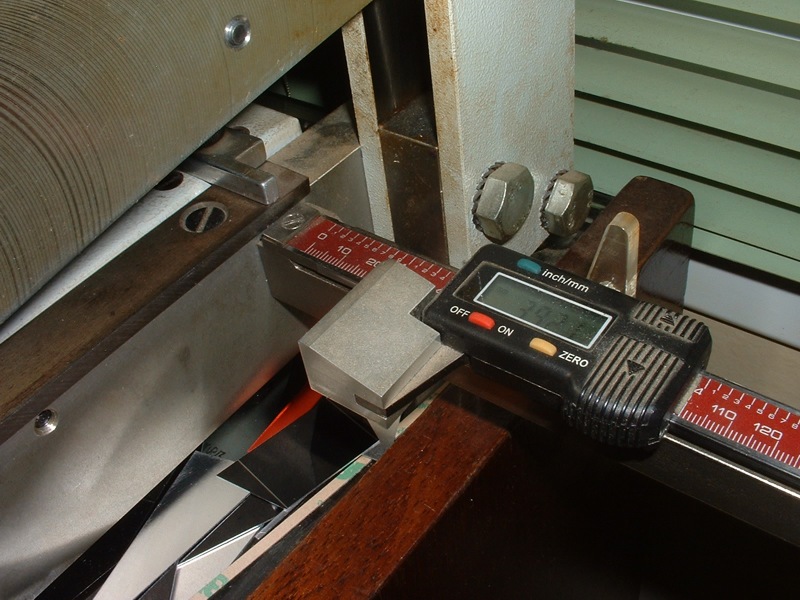

I would like to share this job because it was a funny one and also very usable and an improvement to my lathe. I am getting older and my eyes are not what they used to be and also I am not a very good machinist, so this kind of helps works quite well for me.
I know that some of you are machinist and also all of you are very well with your hands, so any of you can get advantage of these cheap Chinese calipers (capacitive type) for alternative uses.
I did the shears stop five years ago and it was really great, so I did these DROs (digital read out) for my lathe.
Have fun!
Leonardo

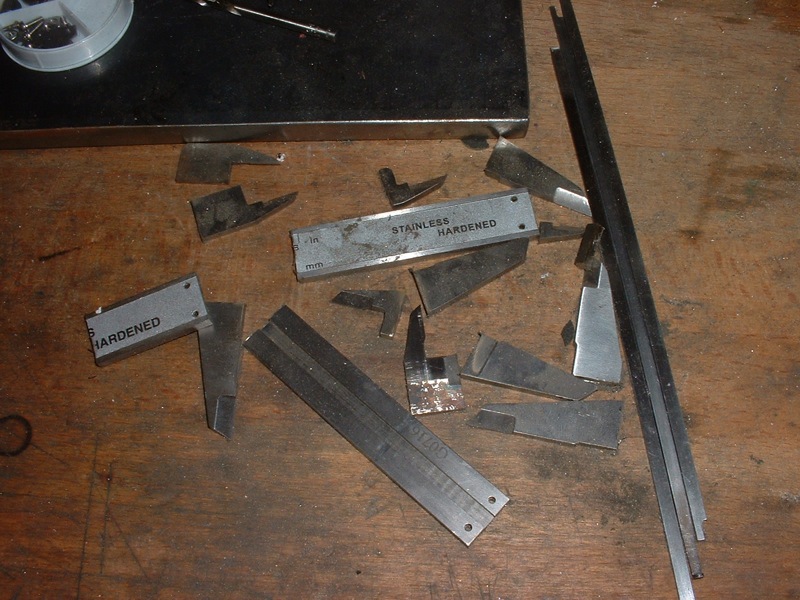

PS. I can resist the temptation to add the scrap picture!
PSS. Excuse me Mario! I call "my little daughter" or "lovely daughter" to my engraving machine... just a matter of proud, sorry!
Regarding the link, I was talking about the "WEB" button right here to the right of the page at the side of the "E-mail" button.
I know that some of you are machinist and also all of you are very well with your hands, so any of you can get advantage of these cheap Chinese calipers (capacitive type) for alternative uses.
I did the shears stop five years ago and it was really great, so I did these DROs (digital read out) for my lathe.
Have fun!
Leonardo
PS. I can resist the temptation to add the scrap picture!
PSS. Excuse me Mario! I call "my little daughter" or "lovely daughter" to my engraving machine... just a matter of proud, sorry!
Regarding the link, I was talking about the "WEB" button right here to the right of the page at the side of the "E-mail" button.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Daughter? Machine link? link at the right? Sorry Leonardo, do i miss then train?
I think he is trying to say that the machine is his baby. Or at least that is how we say it in the US. When you've been working hard on something and it feels more like a child or baby then an object.
Leonardo,
That's a creative and cheap way to get "DRO's" on your lathe. That's really cool! I really need a lathe and a mill! I can't wait to get some. I just need to save up the money. Or...maybe Santa will bring it to me!
Re: This is my first Laminar Water Flow Nozzle.
WOW, this is a great idea! I have to make this too! Its much easyer to work with a digital messure on it.
Thanks sharing this to me
Thanks sharing this to me
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe
Re: This is my first Laminar Water Flow Nozzle.
Hi,
John, I hope you have your lathe soon!. I bought mine from Makro; it is a Chinese one but quite nice and paid only 450 euros for it.
You should to know that the money spent in the lathe itself is less than you will invest in accessories and tools like chucks, bits, inserts, etc., but it worth the inversion.
Mario, you are welcome! I made the cuts with a Dremel using a cutting disk because the caliper's body is really hard. Take care of the temperature. I mean not to overheat the caliper because the hot can ruin the capacitor that is the coper and plastic sandwich fixed over the metal.
Have a great day and weekend!
Leonardo
John, I hope you have your lathe soon!. I bought mine from Makro; it is a Chinese one but quite nice and paid only 450 euros for it.
You should to know that the money spent in the lathe itself is less than you will invest in accessories and tools like chucks, bits, inserts, etc., but it worth the inversion.
Mario, you are welcome! I made the cuts with a Dremel using a cutting disk because the caliper's body is really hard. Take care of the temperature. I mean not to overheat the caliper because the hot can ruin the capacitor that is the coper and plastic sandwich fixed over the metal.
Have a great day and weekend!
Leonardo
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Leonardo : That is one incredible sweet little nozzle you have built there !!! wow !!
(Sorry that I`m in a hurry at this moment) I have not been so much on the forum the past days..
So there is much here that is new to me .
Including your little nozzle !
But did you make every parts yourself ?
It seems like its built from a professional factory !!!
And if you did make the plastic, how did you make the rings (inside) with all the drilled holes ?
I`m very impressed and If I had more time I think there can be allot more to say about your great work.....
I would love to "order" 3-4 of that nozzles from you to have in my pond
(Sorry that I`m in a hurry at this moment) I have not been so much on the forum the past days..
So there is much here that is new to me .
Including your little nozzle !
But did you make every parts yourself ?
It seems like its built from a professional factory !!!
And if you did make the plastic, how did you make the rings (inside) with all the drilled holes ?
I`m very impressed and If I had more time I think there can be allot more to say about your great work.....
I would love to "order" 3-4 of that nozzles from you to have in my pond
Re: This is my first Laminar Water Flow Nozzle.
Hi Filip!
I'm sorry for answering so late but I am quite busy too.
Yes, I did it all.
The plastic pieces... I drilled it with an hexagonal bit... no, no... just kidding!
I designed the pieces in a CAD and then cut it with a laser form a 2 mm thick acrylic sheet.

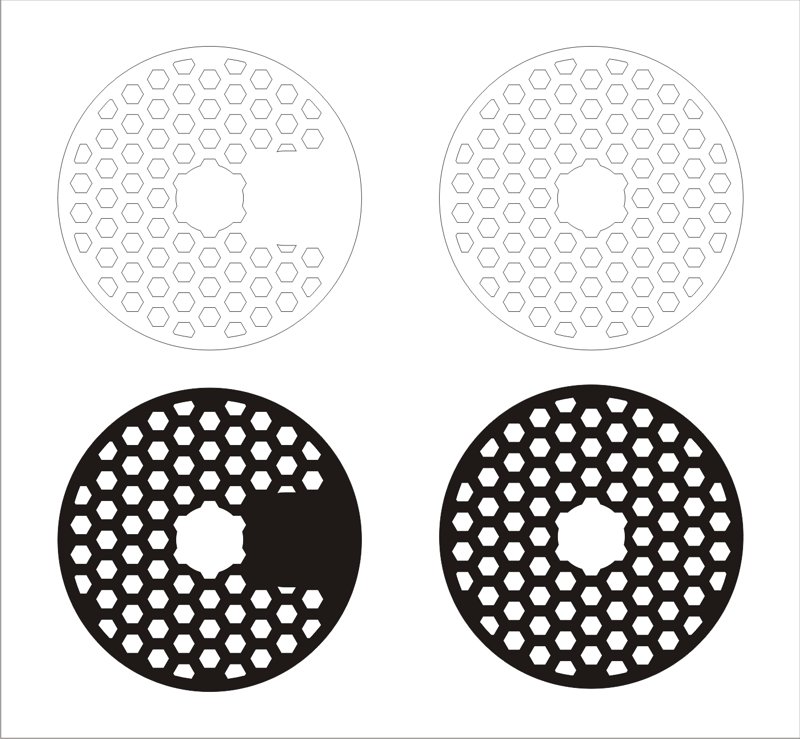

Here is the pieces design.
I have had not enough time to experiment some variations that I have in mind yet but I will be getting back on the nozzle soon.
I hope will be able to take a better video the next time.
Thank you a lot for your kind comments and compliments and also thank you again for creating such a great forum.
I would've never been able to achieve the construction of my little nozzle without the huge sharing that I found here. Thanks to you all!
Cheers!
Leonardo.
I'm sorry for answering so late but I am quite busy too.
Yes, I did it all.
The plastic pieces... I drilled it with an hexagonal bit... no, no... just kidding!
I designed the pieces in a CAD and then cut it with a laser form a 2 mm thick acrylic sheet.
Here is the pieces design.
I have had not enough time to experiment some variations that I have in mind yet but I will be getting back on the nozzle soon.
I hope will be able to take a better video the next time.
Thank you a lot for your kind comments and compliments and also thank you again for creating such a great forum.
I would've never been able to achieve the construction of my little nozzle without the huge sharing that I found here. Thanks to you all!
Cheers!
Leonardo.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Wow, this looks cool, do you have a Laser cutter at home?
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe
Re: This is my first Laminar Water Flow Nozzle.
LASERS! I'm drooling! I wish I had a laser cutter (or access to one)!
Is there any particular reason you went with hexagons instead of circles? I don't even know if there is a difference, but you may want to check into that.
Is there any particular reason you went with hexagons instead of circles? I don't even know if there is a difference, but you may want to check into that.
Re: This is my first Laminar Water Flow Nozzle.
Hey... Hi buddies!

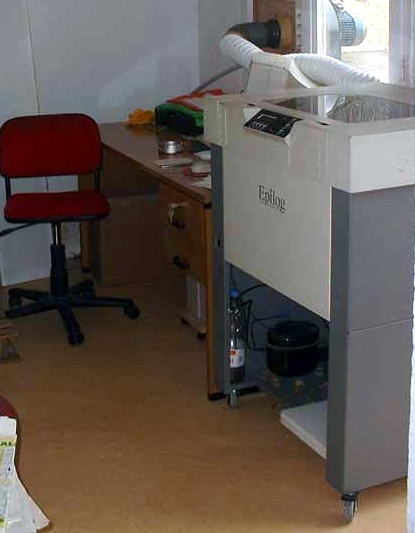

Yes Mario, I do have a laser machine. It is an old 25 watts Epilog Summit but I love it.
John.... your wish list is growing and growing! After the lathe a laser machine will be a great addition to your workshop!
The reason because I choose the hexagons is that they can be arranged more efficiently than the circles with a better control of the inter spaces. I mean I was able to control the wall thickness between the hexagons balancing the total cut area with the piece strength. Just an experiment!
All the best,
Leonardo.
Yes Mario, I do have a laser machine. It is an old 25 watts Epilog Summit but I love it.
John.... your wish list is growing and growing! After the lathe a laser machine will be a great addition to your workshop!
The reason because I choose the hexagons is that they can be arranged more efficiently than the circles with a better control of the inter spaces. I mean I was able to control the wall thickness between the hexagons balancing the total cut area with the piece strength. Just an experiment!
All the best,
Leonardo.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Leonardo : That is awesome !!!
wow you have your own laser cutter .. give me some pictures
I have 1,5W green DPSS laser that can cut small plastic haha .. (and one 1W RGB laser)
But wow 25W is allot of power. (maybe you should visit www.photonlexicon.com forum)
The work you have done making that small nozzles is just incredible!
Thank you also for the kind words but remember YOU and everybody on this forum is what make this forum great !!
All the info YOU and the other shares is helping everybody
Cheers
wow you have your own laser cutter .. give me some pictures
I have 1,5W green DPSS laser that can cut small plastic haha .. (and one 1W RGB laser)
But wow 25W is allot of power. (maybe you should visit www.photonlexicon.com forum)
The work you have done making that small nozzles is just incredible!
Thank you also for the kind words but remember YOU and everybody on this forum is what make this forum great !!
All the info YOU and the other shares is helping everybody
Cheers
Re: This is my first Laminar Water Flow Nozzle.
Hi Filip!
I'm afraid that you are confused about the laser. My Epilog Machine is in fact at the lower end of the power scale for CO2 laser engraving/cutting systems. Although the laser tube is 40W the machine is rated at 25W witch is quite enough to cut a 6mm plywood or acrylic sheet. I am attaching a picture of the machine.
Hey... I visited the photonlexicon forum... quite interesting! Thank you for the link.
Kind regards,
Leonardo.
I'm afraid that you are confused about the laser. My Epilog Machine is in fact at the lower end of the power scale for CO2 laser engraving/cutting systems. Although the laser tube is 40W the machine is rated at 25W witch is quite enough to cut a 6mm plywood or acrylic sheet. I am attaching a picture of the machine.
Hey... I visited the photonlexicon forum... quite interesting! Thank you for the link.
Kind regards,
Leonardo.
Leonardo- Nozzle Newbie
- Posts : 29
Join date : 2009-09-06
Age : 67
Location : Cordoba - Argentina
Re: This is my first Laminar Water Flow Nozzle.
Ohh man, what a COOL THING! i WISH I HAD ONE OF THISN GUYS AT HOME.
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe
Re: This is my first Laminar Water Flow Nozzle.
Mario, what are you waiting for? You've finished your fountain!!! You should have LOADS of spare time now. It's time to start making your home built cnc laser cutter!
Re: This is my first Laminar Water Flow Nozzle.
John wrote:Mario, what are you waiting for? You've finished your fountain!!! You should have LOADS of spare time now. It's time to start making your home built cnc laser cutter!
Yes, why not!, I try to build one, i think in 2 weeks i made my cuts!
No, that is really to dengerous for me ... A plasma cutter, why not, but a 25W laser cutter .. Huhhh!!!
No i am actually try to connect two microcontrollers with air a transmitter, 2x RFM12, ohh man this is such hard work, transmitting and menaging bytes by bytes to the air and recieve it, i need to learn so many things about bytes sending nad recieving, but in a view weeks i think can send and recieve my own bytes over the air.
And then i try to make a remote 100W Laser cutter! .. No, i am joking.
Magic-nozzle- Nozzle Grand Master
- Posts : 287
Join date : 2009-04-02
Age : 56
Location : Europe
Re: This is my first Laminar Water Flow Nozzle.
I was working on a problem that was doing the same thing sending byte via RF. I got some code to work pretty reliably, but it IS VERY HARD!
I suggest using the UARTs on the chips! http://en.wikipedia.org/wiki/Universal_asynchronous_receiver/transmitter
But I'm sure you already know that.
I suggest using the UARTs on the chips! http://en.wikipedia.org/wiki/Universal_asynchronous_receiver/transmitter
But I'm sure you already know that.
Page 1 of 2 • 1, 2
Similar topics
» My first try at a laminar flow nozzle
» Khattak's Laminar Flow Nozzle Project
» Aluminum Outlet - exit hole for laminar flow nozzle
» Output side of laminar nozzle
» For what reason can the laminar flow be dispersed?
» Khattak's Laminar Flow Nozzle Project
» Aluminum Outlet - exit hole for laminar flow nozzle
» Output side of laminar nozzle
» For what reason can the laminar flow be dispersed?
Page 1 of 2
Permissions in this forum:
You cannot reply to topics in this forum
